Applicable SKU: MT-1918

This guide will walk you through installation notes, troubleshooting tips, and special features for installing your VHEDIA head unit into a Toyota LandCruiser 100 Series 2002-2007.

Installation Video

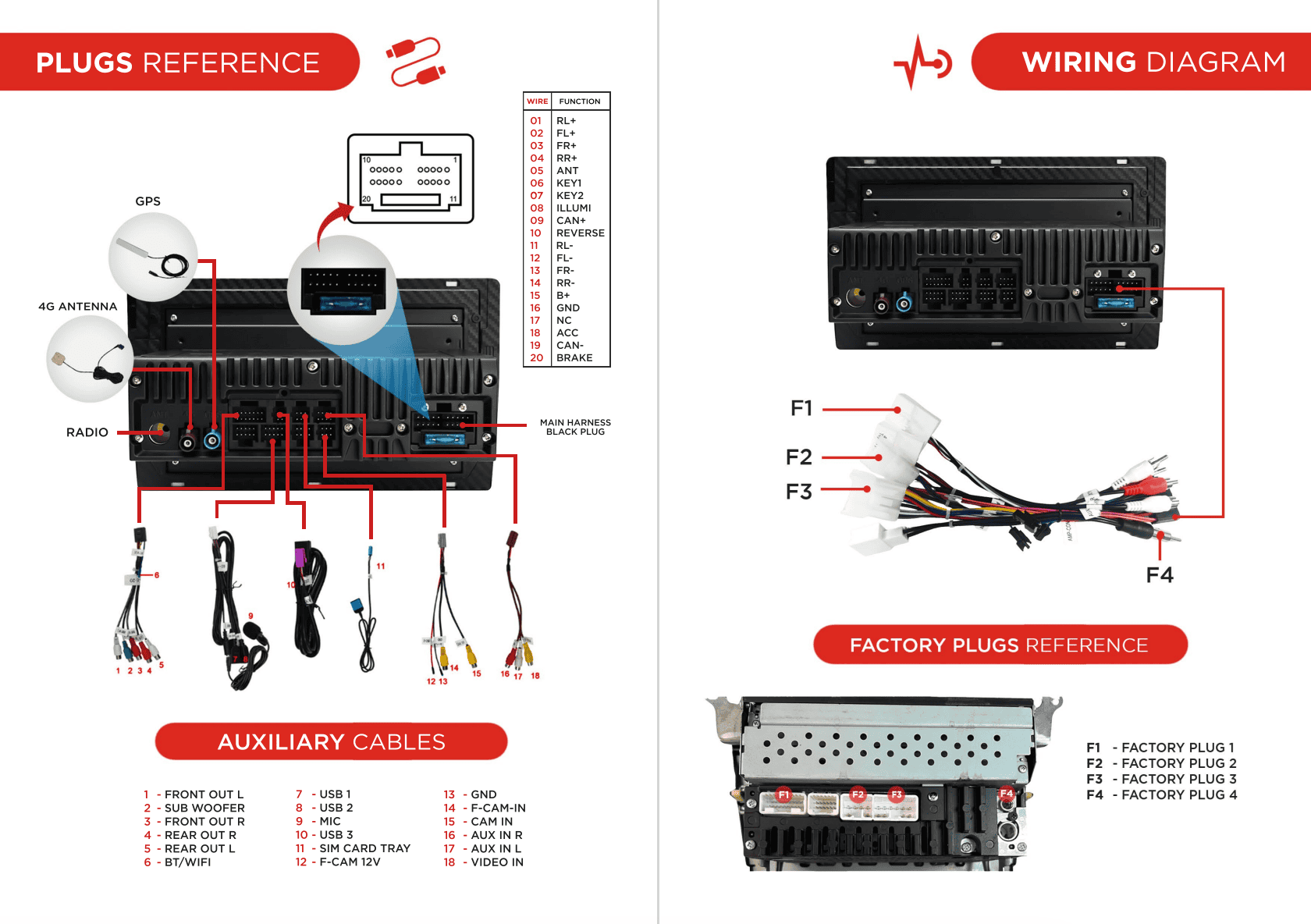

Which Wire Goes Where


Facia Fitment Guide

This is a guide to making your facia perfectly fit on your Toyota LandCruiser 100 Series 2002-2007.

Things you will need:

• Safety Gloves
• Sharp Knife or Cutter
• Tape
• Marker
• Nail File or Sandpaper

BlockNote image

  1. Begin taping the upper part of the dash to ensure no scratches and damages to the dash.

  2. Proceed with marking the plastic tabs needs that need to be cut inside the dash where the head unit will be installed. (refer to the picture below for a clearer view)

  3. Polish the uneven surface where the tabs were cut using a sandpaper or nail file.

BlockNote image
Once all has been done, just continue with the installation.
